RV Gate Installation in Queen Creek, AZ

RV gate installation in Queen Creek covers three pieces of work: opening the wall, building a pillar on each side, and hanging the gate. The order matters because the pillars carry everything. A gate this wide hangs off one post and twists it every time it swings, so each pillar needs its own footing and more steel than the wall it interrupts.

Queen Creek's RV Parking Rule Shapes the Gate

The Town's Zoning Ordinance asks that an RV stored long term be kept behind the minimum front yard setback and screened with masonry fence walls, solid gates and landscaping. That one sentence explains most RV gates in town: a solid gate in a block wall is the screening.

Lot size changes where the RV can sit. On R1-18 lots and every smaller residential district, one RV is allowed and it cannot be parked in front of the home during long-term storage, so the gate usually leads to a pad beside or behind the house. On R1-35 and larger lots the RV may stay in front of the home as long as it is outside the required front setback. The ordinance adds that HOAs may set their own requirements on top.

How Wide an RV Gate Should Be

Twelve feet of clear opening fits most motorhomes, which run about 8 feet 6 inches wide. The approach decides the rest. A straight run off the driveway forgives a 12 foot gate; a turn in from the street, a long fifth-wheel or a boat trailer pushes toward 14 or 16 feet. Widening an opening later means demolishing a new pillar, so the extra two feet are cheaper now than after the first scraped mirror.

Height is the other check. A side yard wall is normally 6 feet, but anything arched or built over the opening has to clear the tallest rig, and a solid gate leaf catches wind. Some Phoenix-area installs use an open steel design or a rolling gate to take strain off the hinges.

Cutting an Opening in an Existing Block Wall

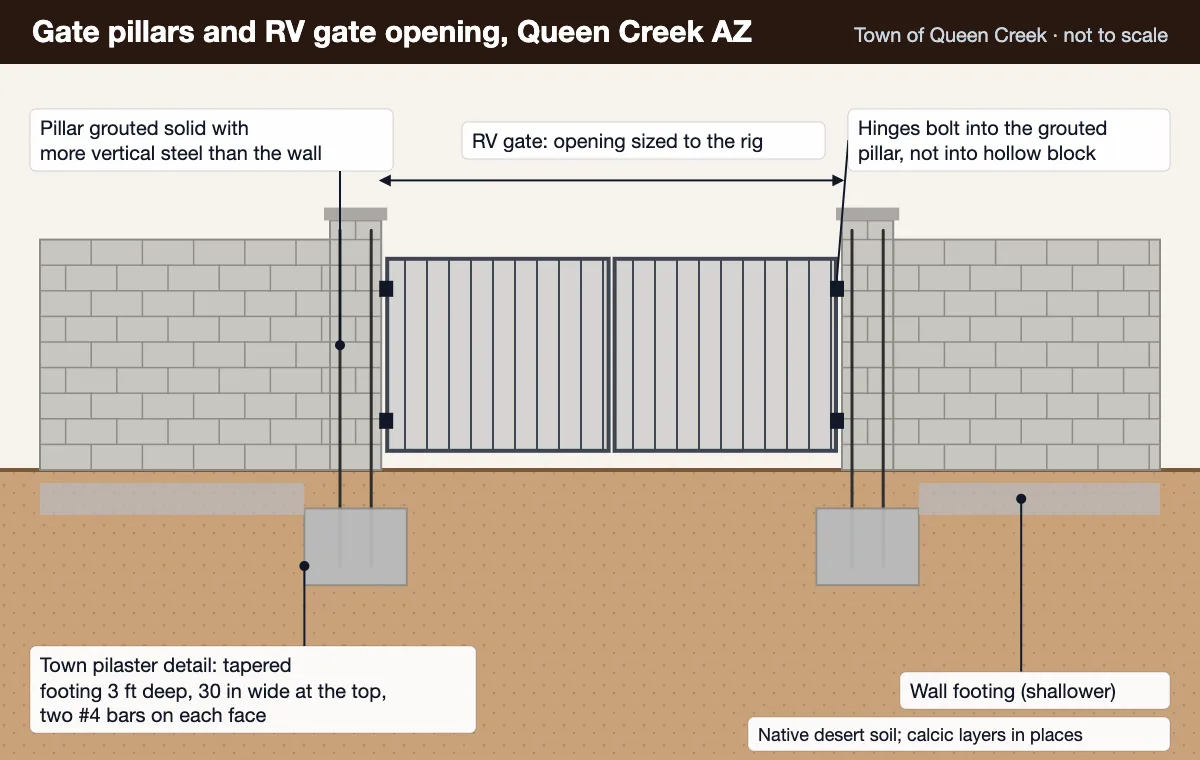

The wall is saw-cut to the planned width, the old footing is broken out where each pillar goes, and new footings are poured with vertical bars that run up through grouted pillar cells. The Town's standard pilaster detail (a tapered footing 3 feet deep and 30 inches wide at the top, two #4 bars on each face) was drawn to hold a fence panel against wind. A swinging RV gate is a heavier load, so ask for posts and footings sized to the actual gate rather than the standard pilaster. Caliche hardpan under the footing holes is common in the area, per the Arizona Cooperative Extension's caliche guide, and can add a day of pneumatic breaking before either pillar reaches stable bearing soil.

Queen Creek's zoning ordinance asks that fence plans show the method of construction and anchoring for the fence, posts and gate, so this is worth having on paper before the saw comes out. The gate pillar page covers post and column design in more detail.

HOA Rules That Affect RV Gates

HOA guidelines decide the style, and sometimes the location. Ironwood Crossing's design guidelines, for example, allow double gates for wider back yard access but want them to match the original single gates in type, design, color and location, ask for plants between the house and the new gates where possible, and prohibit gates in a side fence that runs along a street where neighboring front yards face the same street. Ornamental gates there are considered only up to 60 inches above the ground.

Widening the driveway to reach the gate is its own approval. The same guidelines cap all paved surfaces at 45 percent of the front yard's width and keep driveway expansions at least 18 inches from the side lot line, or 12 feet where that side faces a street.

RV Gate Cost in Queen Creek

The gate itself is the most predictable number: about $1,900 to $3,400 installed for a standard dual-panel steel gate in the Phoenix area (Homeyou figures cited by Desert Dreamco, 2026). The masonry is quoted separately and depends on how much wall is removed, how many pillars are built and whether the cut leaves a short wall stub that has to be rebuilt. Where new wall is part of the job, Phoenix-area 6 foot CMU runs $60 to $95 per linear foot for plain gray block.
